75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles

$35,800/sets 1-4 sets
السعر
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
فيديو التفتيش الصادر: متاح
تقرير اختبار الآلات: متاح
المكونات الأساسية: PLC، المحرك، المحمل، علبة التروس، المحرك، العتاد
معالجة البلاستيك: ب، هدب، بك، بي / ب
مكان المنشأ: جيانغسو، الصين
brand name: DAWSON
الجهد االكهربى: 220 فولت ، 380 فولت
البعد (الطول * العرض * الارتفاع): 3.9*2.0*2.6
قوة التثبيت (kn): 65
العلامة التجارية PLC: ميتسوبيشي
نسبة المسمار L/D: 24
قطر المسمار (مم): 65
الإخراج (كجم / ساعة): 75
الأتمتة: تلقائي
عدد منطقة التسخين اللولبية: 3
طاقة تسخين اللولب (kW): 6
طاقة محرك الطارد (kW): 18.5
حجم صوانى القالب (العرض) (مم): 290
حجم صوانى القالب (الارتفاع) (مم): 320
ضغط الهواء (MPA): 0.6
امتصاص الهواء (متر مكعب / دقيقة): 0.6
طاقة تسخين رأس القالب (kW): 5.7
الطاقة (كيلوواط): 101.2
الوزن (ر): 5.5
نقاط البيع الرئيسية: سهل التشغيل
ضمان: 1 سنة
رقم الموديل: ABLB65I
محطة: محطة واحدة أو محطة مزدوجة
الأعلى. حجم المنتج: 5L
نظام التثبيت: نوع التبديل نظام القيود
مادة مناسبة: الكثافة، PP، PVC، PS، PETG، البولي إثيلين المنخفض الكثافة
صنع في: الصين
قوة محرك مضخة الزيت: 5.5 كيلو واط
قوة تسخين الرأس: 5.7 كيلو واط
علامة تجارية: داوسون
مواصفة: ABLB65I
معلومات اساسية
شروط الدفع والشحن
منتوج وصف
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 0
Products Description


DAWSON MACHINERY & MOULD GROUP

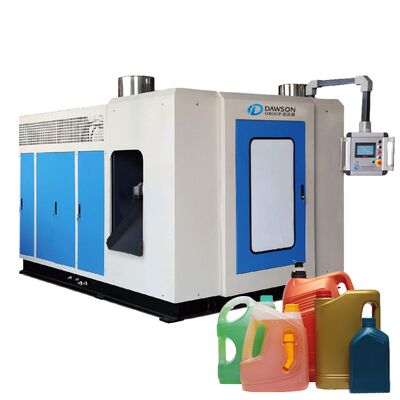

Extrusion Blow Molding Machine ABLB75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 1
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 2
Machine Model
Max. Bottle size
Production forecast
ABLB65
Double Station Double Head
1L
450~480 BPH
Double Station Single Head
5L
280~320 BPH
Technical Parameters
Name
Units
ABLB65II
ABLB75II
Max.product volume
L
3.5
8
Screw diameter
MM
65
75
Screw drive power
KW
18.5
22
Output of HDPE
KG/H
75
100
Oil pump drive power
KW
7.5
7.5
Clamping force
KN
65
80
Max.size of mold
MM
320×350
400×430
Template size
MM
290×320
380×420
Mold stroke
MM
150-500
170-520
Max.die diameter
MM
170
170
Size of machine
L×W×H
3.9×2.2×2.6
4.2×2.2×2.7
Weight of machine
TON
6.5
7.5
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 3
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 4
Details Images
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 5
Professional Workshop
Our professional blow molding machine workshop...
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 6

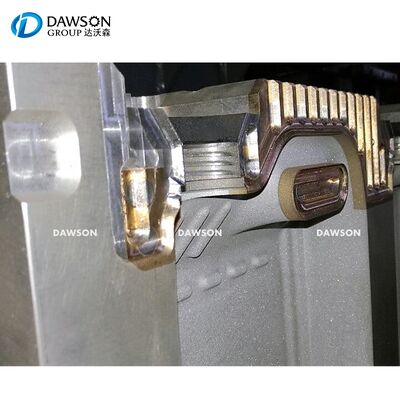

High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 7
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 8
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 9

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 10
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 11
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 12
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 13
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 14
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 15
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 16
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 17
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 18
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 19
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 20
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 21
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 22
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 23
Our Service
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 24
75 kg per hour output blow molding machine single station or double station for manufacturing 2L 5L HDPE lubricant bottles 25
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
