Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds

$48,800/sets 1-2 sets
السعر
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
فيديو التفتيش الصادر: متاح
تقرير اختبار الآلات: متاح
المكونات الأساسية: PLC ، المحرك ، تحمل ، علبة التروس ، والعتاد
معالجة البلاستيك: PP، HDPE، ABS، PVC، PE، EVA، PE / PP، HDPE / PP
مكان المنشأ: الصين
brand name: Dawson
الجهد االكهربى: 440 فولت / 415 فولت / 380 فولت / 220 فولت
البعد (الطول * العرض * الارتفاع): 4497x4139x2655
قوة التثبيت (kn): 110
العلامة التجارية PLC: سيمنز
نسبة المسمار L/D: 24
قطر المسمار (مم): 85
الإخراج (كجم / ساعة): 130
الأتمتة: تلقائي
عدد منطقة التسخين اللولبية: 5
طاقة تسخين اللولب (kW): 12.5
طاقة محرك الطارد (kW): 30
حجم صوانى القالب (العرض) (مم): 400
حجم صوانى القالب (الارتفاع) (مم): 490
ضغط الهواء (MPA): 0.8
امتصاص الهواء (متر مكعب / دقيقة): 15
طاقة تسخين رأس القالب (kW): 5.5
الطاقة (كيلوواط): 72.2
الوزن (ر): 11
نقاط البيع الرئيسية: سهل التشغيل
ضمان: 1 سنة
وقت الدورة: 21.6 ثانية
إنتاج: 16000 قطعة يوميا
تصميم الطبقة: تصميم مزدوج الطبقة
مادة العفن: P20، 2316، S136H، الألومنيوم مع النحاس البريليوم.
عمر العفن: > 1،000،000 دورة
اعدادات اللغة: لوحة تشغيل باللغتين الصينية والإنجليزية
التعليمات المقدمة: تعليمات باللغتين الصينية والإنجليزية
الطلب على العمل: 1 ~ 2 مشغل
خدمة ما بعد البيع المقدمة: التركيب الميداني والتشغيل والتدريب
لون: تخصيص العميل
معلومات اساسية
شروط الدفع والشحن
منتوج وصف
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 0
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 1

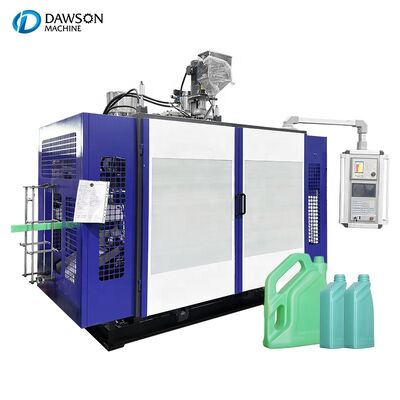

High Speed Extrusion Blow Molding Machine

suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 0L to 5L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation.
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 2
Machine Model
Max. Bottle Size
Production Forecast
DSBSERIES
Double Station Single Head
5L
200-250BPH
Double Station Two Head
2L
450-550BPH
 Basicparameters
 Suitablematerial
 PE.PP,PVC,PS,PETG,soon
 Maxvolume
 5L(Singlehead)
 Outputcapacity
 200~250pcs/h
Size
 3.8×2.3×2.5(M)
 Weight
 6.5T
system
 Specification
 Parameters
 Note
Plasticizion system
 Summarize
Highefficientlowpowerconsumptionplasticizion system,transducercontrol,self-protectfunctionwhenstartedat low temperature
Reducer
MaterialofGearboxbody:HT200 Materialofgear:ZG35CrMo Materialofbearing:42CrMo HeattreatmentofGear:Quenching
Brand:GUOMAO (ThebestGearbox supplierinChina)
Screw
∮70mm,L/Dratio25/1, Material:38CrMoALA Nitriding heat-treatment Cooling by coolingFan
 Coolingsystem available
Plasticization
 70~90Kg/H
 HDPE
HeatingZone
3-4AluminumHeater
 Automaticheating
Heatingpower
 13.5KW/H
ExtrusionMotor
 Threephaseasynchronousmotor (380V,50HZ)22KW
Brand:W&N
CoolingFan
3-4zone
Automaticcooling
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 3
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 4
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 5
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 6
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 7
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 8
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 9
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 10
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 11
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 12
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 13
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 14

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 15
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 16
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 17
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 18
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 19
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 20

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Aluminum with beryllium copper mold material 5L 8L 10L plastic bottle blowing machine HDPE machine cycle time 21.6 seconds 21
1.Symmetric Toggle Clamping Structure2.Deceleration Value for Carriage Movement3.TAIWAN WISETECH ControllingSystem0-5L HDPE Blow Molding Machine Professional Extrustion Blow Molding Machine Milk bottle / chemical bottle PETG bottle / Lubricant bottle
