HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine

1 set
MOQ
USD 52800-59860
السعر

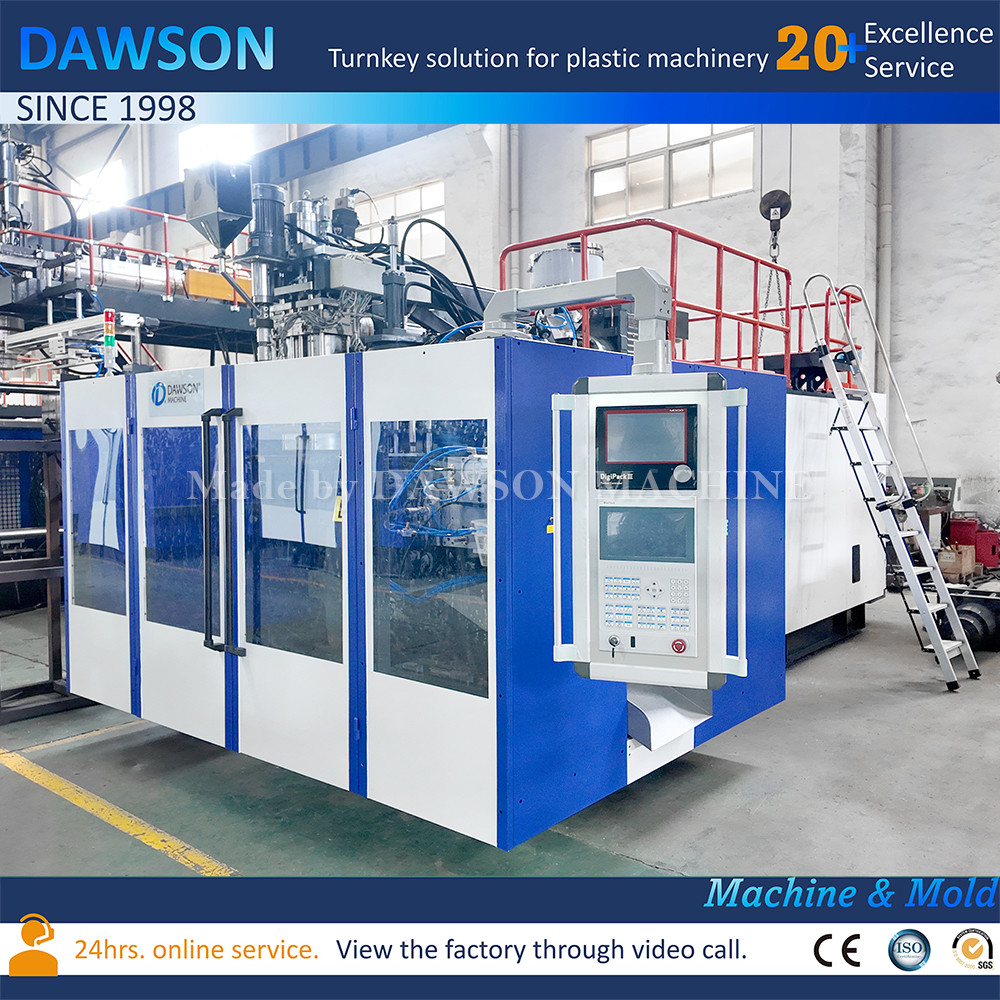

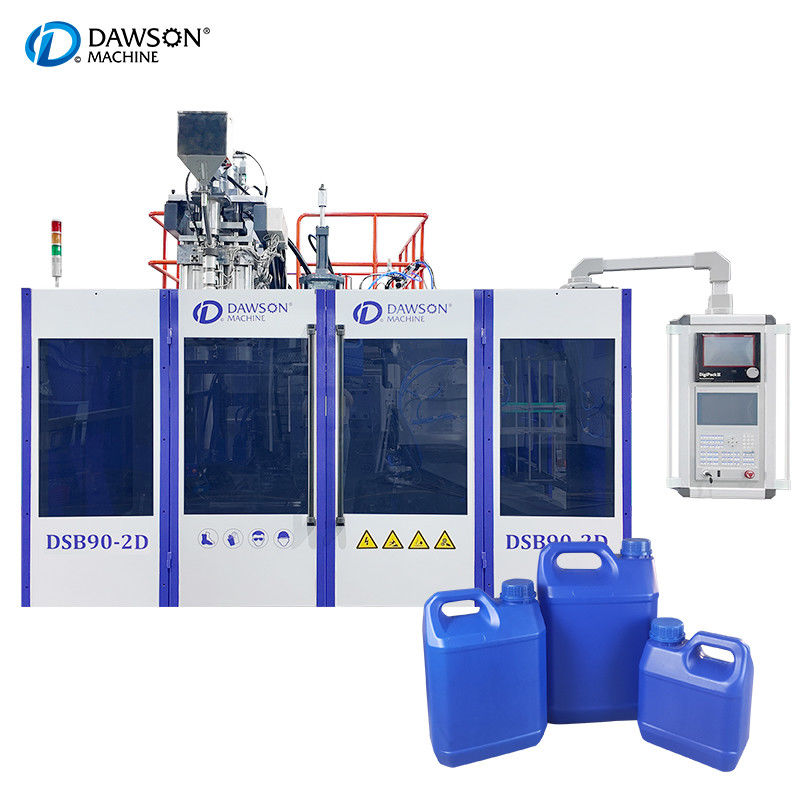

HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 30L
Cooling water pressure: 0.6 MPA
Water Consumption: 100 L/Min
Mould Lifespan: > 1,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum with beryllium copper.
Language settings: Chinese, English and other language as customer need
Labor demand: 1~2 operetor
After-sales Service Provided: Send engineer to customer's factory
معلومات اساسية
Place of Origin: China
اسم العلامة التجارية: Dawson
إصدار الشهادات: DSB90-2
شروط الدفع والشحن
Payment Terms: L/C, T/T
منتوج وصف

HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 0HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 1

screw Dianeter 90mm
Aspect Ratio 24:1
Extrusion lMoto1 37kw(Servo Motor)
Screw speed 10-60r.p.m
Invertor HuiChuan
Extrusion volume 130Kg/h(HDPE)
Heating power 27KW
Gearbox 250
Die Head 5L Continues level line Double Die head
Center Distance 250
Maximum die set 150mm
Template Size 420*500
Clamping Force 110KN

HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 2HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 3

High speed Extrusion Blow Molding Machine
The High - speed Extrusion Blow Molding Machine is a state - of - the - art piece of industrial equipment that has revolutionized the manufacturing process for a wide range of plastic products. This highly efficient machine is specifically designed and engineered to meet the diverse needs of modern industries, making it an indispensable asset for manufacturers aiming to produce high - quality plastic items with precision and speed.

One of the primary applications of this remarkable machine is in the production of plastic bottles. In today's consumer - driven market, plastic bottles are used for countless products, from beverages such as water, soft drinks, and juices to personal care items like shampoos, conditioners, and lotions. The High - speed Extrusion Blow Molding Machine can create plastic bottles in various shapes, sizes, and capacities, ensuring that manufacturers can meet the specific packaging requirements of their products. It can produce bottles with intricate designs, unique neck finishes, and different wall thicknesses, all while maintaining strict quality control standards. The machine's high - speed operation means that large quantities of plastic bottles can be manufactured in a relatively short period, significantly increasing production efficiency and reducing costs.

In addition to plastic bottles, this machine is also highly suitable for making blowing jars. Blowing jars are commonly used for packaging food products such as jams, jellies, pickles, and sauces, as well as for storing household items like spices and craft supplies. The High - speed Extrusion Blow Molding Machine can produce jars with smooth surfaces, consistent wall thicknesses, and secure lids, ensuring the safety and integrity of the contents. The ability to create jars in different shapes, including round, square, and oval, provides manufacturers with the flexibility to design packaging that stands out on the shelves and appeals to consumers.

Another important use of this machine is in the production of small blow - molded containers. These containers are widely used in industries such as pharmaceuticals, cosmetics, and chemicals for packaging small quantities of products. The High - speed Extrusion Blow Molding Machine can create small containers with precise dimensions and tight tolerances, ensuring that they meet the strict regulatory requirements of these industries. Whether it's a tiny vial for holding liquid medications or a small jar for storing cosmetics, this machine can produce high - quality containers that are both functional and aesthetically pleasing.

Specifically, the Engine Oil Antifreeze Coolant Bottle Machine, which is a specialized version of the High - speed Extrusion Blow Molding Machine, is designed to meet the unique demands of the automotive industry. Engine oil, antifreeze, and coolant are essential fluids for the proper functioning of vehicles, and their packaging must be durable, leak - proof, and capable of withstanding various environmental conditions. The Engine Oil Antifreeze Coolant Bottle Machine can produce bottles with high - impact resistance, excellent chemical compatibility, and secure closures, ensuring that the fluids remain safe and protected during storage and transportation. These bottles are also designed to be easy to pour, reducing the risk of spills and waste.

One of the key features of the High - speed Extrusion Blow Molding Machine is its bilingual operation panel. This panel is equipped with both English and another commonly used language (such as Chinese, Spanish, etc.), making it accessible to a wide range of operators from different regions and language backgrounds. The bilingual interface simplifies the operation process, allowing operators to quickly understand and control the machine's functions without the need for extensive language training. Whether an operator is a native English speaker or someone who is more comfortable with another language, they can easily navigate the machine's settings, adjust parameters, and monitor the production process, ensuring smooth and efficient operation.

Furthermore, the whole blow - molding machine is equipped with automatic configurations sourced from world - famous brands. These components, including motors, sensors, controllers, and hydraulic systems, are renowned for their reliability, performance, and precision. By using high - quality components from leading manufacturers, the High - speed Extrusion Blow Molding Machine can achieve a high level of automation. This automation not only reduces the need for manual labor but also minimizes the potential for human error, resulting in consistent product quality and increased production yields. The machine can automatically adjust parameters such as temperature, pressure, and extrusion speed based on the specific requirements of the product being manufactured, ensuring that each item meets the desired specifications.

The advantages of simple operation and high automation offered by the High - speed Extrusion Blow Molding Machine have far - reaching benefits for manufacturers. Firstly, the simple operation means that new operators can be trained quickly and easily, reducing the time and cost associated with staff training. This allows manufacturers to rapidly increase their production capacity by adding more operators without a long and complex training process. Secondly, the high level of automation ensures that the machine can operate continuously for extended periods with minimal supervision. This not only improves production efficiency but also reduces labor costs, as fewer workers are required to oversee the production process. Additionally, the consistent quality of the products produced by the machine helps manufacturers build a strong reputation in the market, attracting more customers and increasing sales.

In conclusion, the High - speed Extrusion Blow Molding Machine is a versatile, efficient, and user - friendly piece of equipment that offers numerous advantages for manufacturers in various industries. Its ability to produce a wide range of plastic products, including plastic bottles, blowing jars, small containers, and specialized bottles for engine oil, antifreeze, and coolant, makes it an essential tool for modern manufacturing. The bilingual operation panel and automatic configurations from world - famous brands further enhance its usability and performance, providing manufacturers with a competitive edge in the market. As the demand for high - quality plastic products continues to grow, the High - speed Extrusion Blow Molding Machine is poised to play an even more important role in the future of industrial manufacturing.

HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 4HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 5HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 6HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 7

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!



HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 8HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 9HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 10HDPE Canister 4 Gallon 5 Gallon Plastic Extrusion Blow Molding Machine 11

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
