آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل

1 set
MOQ
USD 68800-76800
السعر
آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
Screw Diameter: 40mm
Screw L/D Ratio: 20.5:1
Theoretical Injection Capacity: 238cm³
Injection Pressure: 174Mpa
Max. Hydraulic Pressure: 140Kg/cm
The Actual Injection Quantity(PS):: 225g(ps)/8Oz
Max. Pump Pressure:: 16Mpa
زيت المحرك: 18.5 كيلو واط
Electric Power: 12.2kw
خدمة ما بعد البيع: الدعم عبر الإنترنت
إبراز:

0-500ml زجاجات صنع آلة,آلة صناعة الزجاجات الكاملة الآلية,آلة صناعة الصقيع بالنفخ بالحقن

,

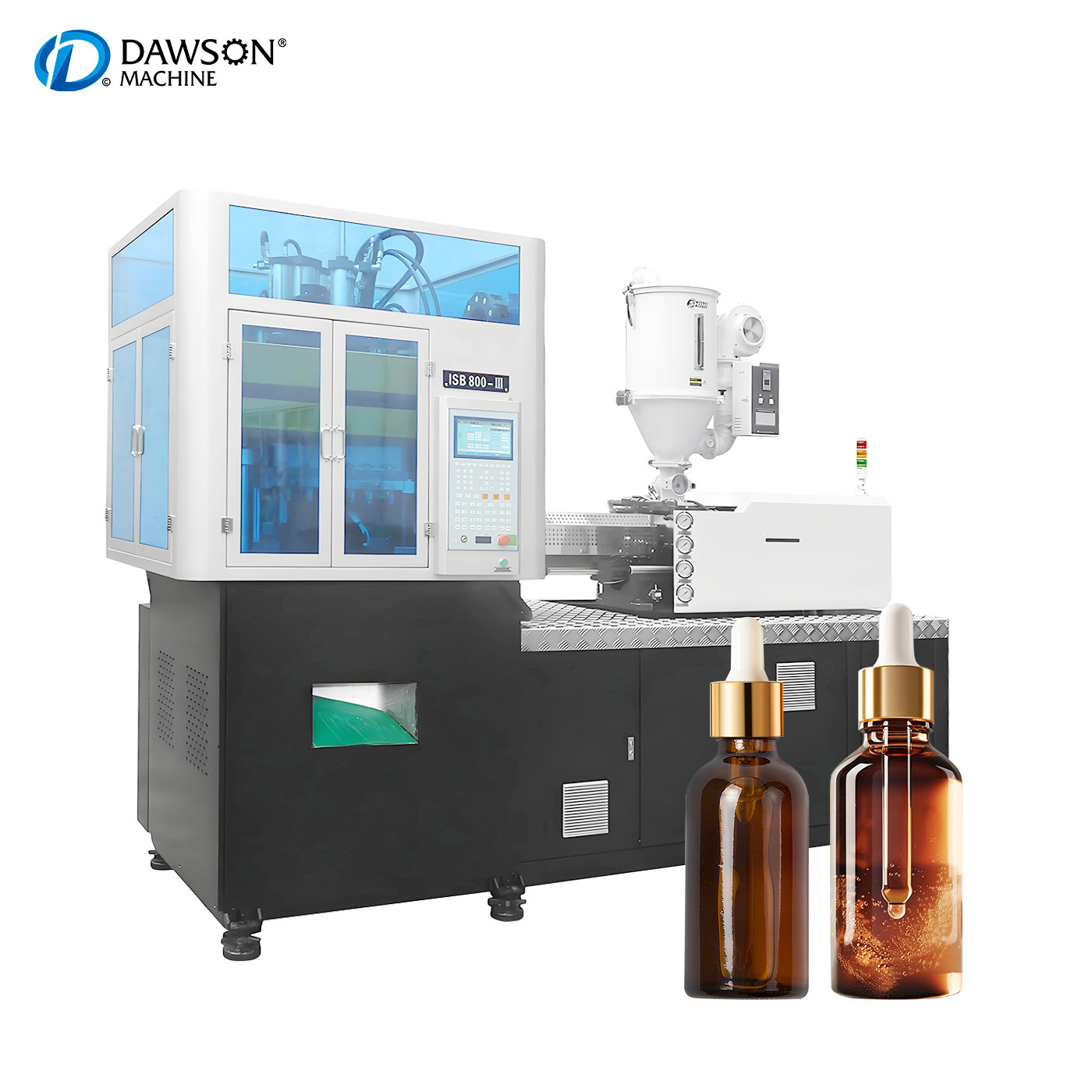

Full Automatic Bottles Making Machine

,

Injection Stretch Blow Moulding Machine

معلومات اساسية
اسم العلامة التجارية: Dawson
شروط الدفع والشحن
شروط الدفع: L/C، T/T
منتوج وصف

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 0آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 1آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 2

Injection Part
Screw Diameter 40mm
Screw L/D Ratio 20.5:1
Screw Speed 0-190RPM
Theoretical Injection Capacity 238cm3
Injection Pressure 174Mpa
Max.Hydraulic Pressure 140Kg/cm
The Actual Injection Quantity(PS): 225g(ps)/80z
Screw Stroke: 190Mm
Others
Max. Pump Pressure: 16Mpa
Motor Oil: 18.5Kw
Electric Power: 12.2Kw
Oil Tank: 400L
Overall Dimension(L*W*H): 3.8M*1.45M*3.0m
Weight: 5000kg

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 3آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 4آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 5

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 6آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 7

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 8

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 9

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 10آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 11آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 12آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 13آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 14آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 15آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 16آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 17آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 18آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 19آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 20آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 21آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 22آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 23آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 24

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 25آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 26آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 27آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 28آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 29آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 30آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 31



FAQ



Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!آلة صناعة زجاجات 0-500ml ذاتية التشغيل بالكامل 32
