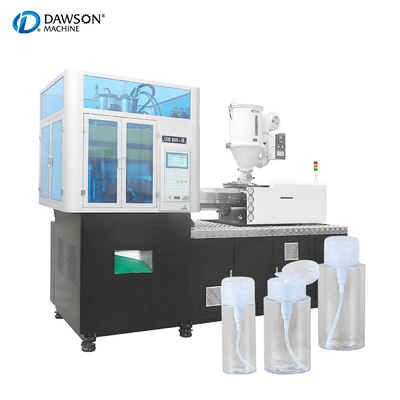

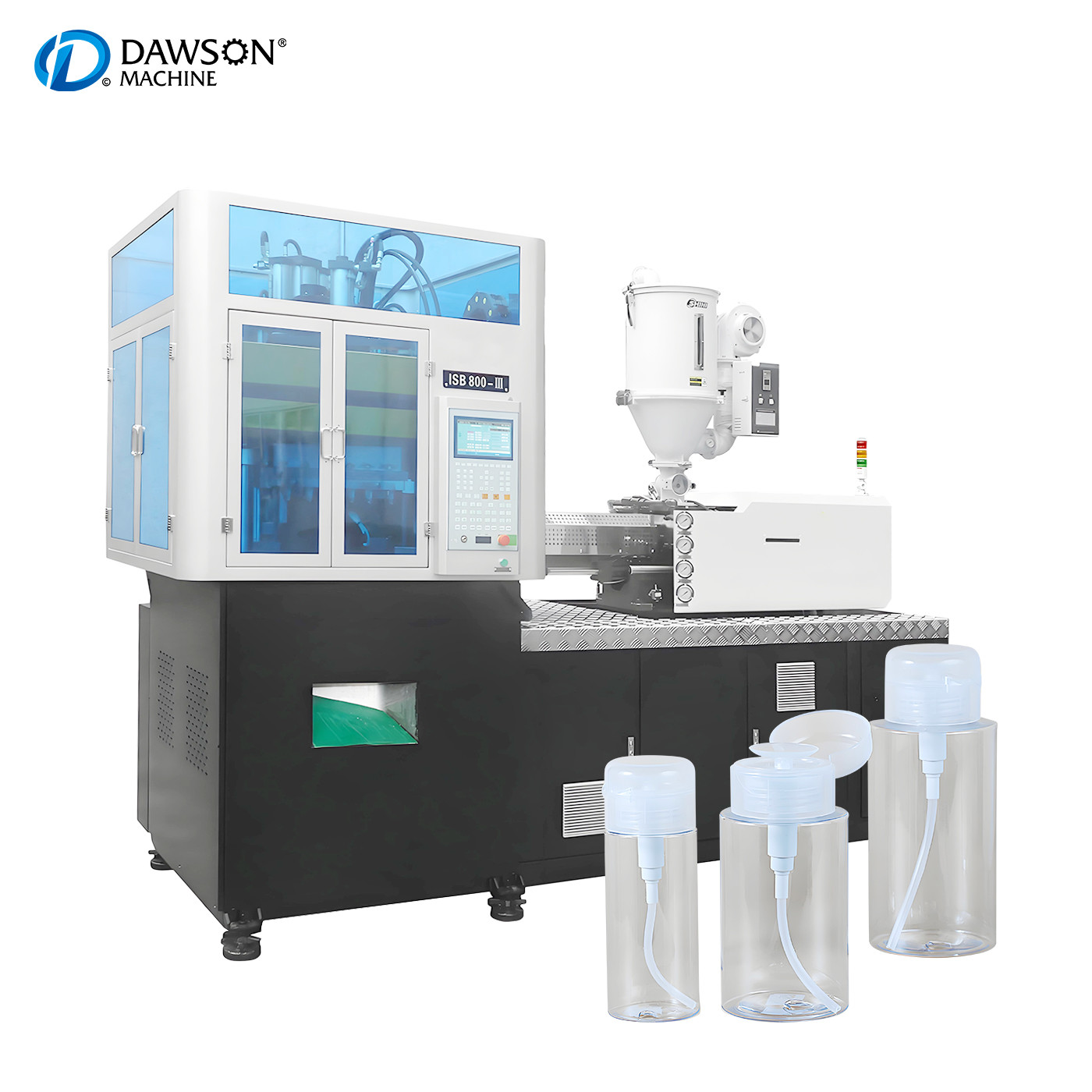

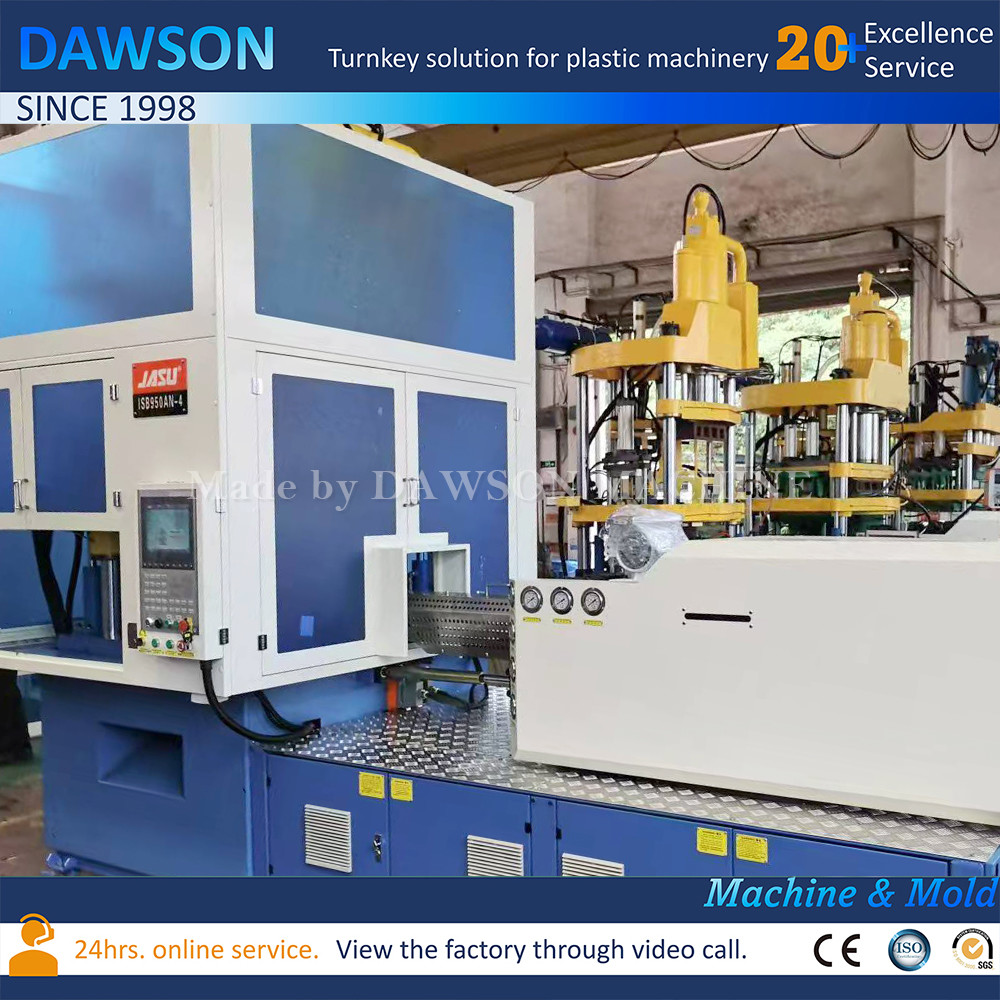

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء

1 set
MOQ
USD 68800-76800
السعر
زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء
ميزات صالة عرض منتوج وصف طلب عرض أسعار
ميزات
مواصفات
قطر المسمار: 40 ملم
Screw L/D Ratio: 20.5:1
القدرة النظرية للحقن: 238 سم مكعب
Injection Pressure: 174Mpa
Max. Hydraulic Pressure: 140Kg/cm
The Actual Injection Quantity(PS):: 225g(ps)/8Oz
الحد الأقصى لضغط المضخة:: 16 ميجا باسكال
زيت المحرك: 18.5 كيلو واط
Electric Power: 12.2kw
After-sales Service Provided: Online support
إبراز:

آلة تصنيع الزجاجات التجميلية PET PETG,آلة صناعة القالبات بالنفخة بالحقن,PETG حقن مشبك آلة صناعة النفخ

,

PET Injection Stretch Blow Molding Machine

,

PETG Injection Stretch Blow Molding Machine

معلومات اساسية
اسم العلامة التجارية: Dawson
شروط الدفع والشحن
شروط الدفع: L/C، T/T
منتوج وصف

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 0زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 1زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 2

Injection Part
Screw Diameter 40mm
Screw L/D Ratio 20.5:1
Screw Speed 0-190RPM
Theoretical Injection Capacity 238cm3
Injection Pressure 174Mpa
Max.Hydraulic Pressure 140Kg/cm
The Actual Injection Quantity(PS): 225g(ps)/80z
Screw Stroke: 190Mm
Others
Max. Pump Pressure: 16Mpa
Motor Oil: 18.5Kw
Electric Power: 12.2Kw
Oil Tank: 400L
Overall Dimension(L*W*H): 3.8M*1.45M*3.0m
Weight: 5000kg

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 3زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 4زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 5

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 6زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 7

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 8

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 9

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 10زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 11زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 12زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 13زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 14زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 15زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 16زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 17زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 18زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 19زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 20زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 21زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 22زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 23زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 24

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 25زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 26زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 27زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 28زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 29زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 30زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 31



FAQ



Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!زجاجة التجميل صناعة بي تي بيتغ حقن مشروع صناعة الطلاء 32
